Lasers aren’t simply helpful for entertaining cats or mentioning options of powerpoint slides. They will additionally drill holes on icy extraterrestrial our bodies from comets to Mars polar caps. Not less than in accordance with a brand new paper in Acta Astronautica by researchers on the Technical College of Dresden, who describe a brand new laser drill to be used on icy surfaces all through our photo voltaic system.
The issue the system is making an attempt to unravel is a straightforward one – drilling holes into ice on different planets and comets is often achieved with a “cryobot” – basically a sizzling stick designed to soften the ice by means of thermal contact. There are a number of issues with this method, with one of many largest being an influence requirement. A cryobot can require kilowatts of vitality. A typical lander’s radioisotope thermal generator can solely present a number of hundred watts. Touchdown a kilowatt stage energy system some place else within the photo voltaic system is awfully troublesome and costly.
There are different issues too. To get actually deep into the ice would require an extended poker – and due to this fact extra materials. Storing all that materials is troublesome, and it additionally provides to the general weight of the lander. Even the atmosphere itself works in opposition to this technique. Since a lot of the drilling can be achieved in a whole vacuum, the ice would sublimate into water vapor somewhat than switch into liquid, making the thermal contact between the cryobot and the ice its making an attempt to soften tenuous at greatest.
Fraser makes the case for going to among the icy moon of Jupiter.
So why not laser the ice as a substitute? Lasers resolve lots of the issues of a cryobot. They’re bodily small, and may be very low energy. They don’t require a bodily interface with the ice, because the laser may be directed onto any floor. And even higher, the sublimated water may float out of the borehole and convey trapped particles as much as the lander for evaluation with out being slowed down by a cumbersome metallic probe.
To show out the thought, the researchers, led by Martin Koßagk of the Institute for Aerospace Engineering, arrange a take a look at experiment in a vacuum chamber with a 1550nm infrared laser. They selected that wavelength as a result of it’s notably strongly absorbed by ice, permitting extra of the vitality to be transferred on to the fabric to be melted.’
They ran experiments on three several types of ice, representing completely different sorts of ice anticipated to be discovered all through the photo voltaic system. The primary kind was commonplace “clear” ice, and so they had been capable of obtain a drill charge of roughly 1 meter per hour with slightly below 20W of energy provided to the laser. All of those depth measurements had been supplied with a visual gentle rangefinder that was mounted consistent with the laser.

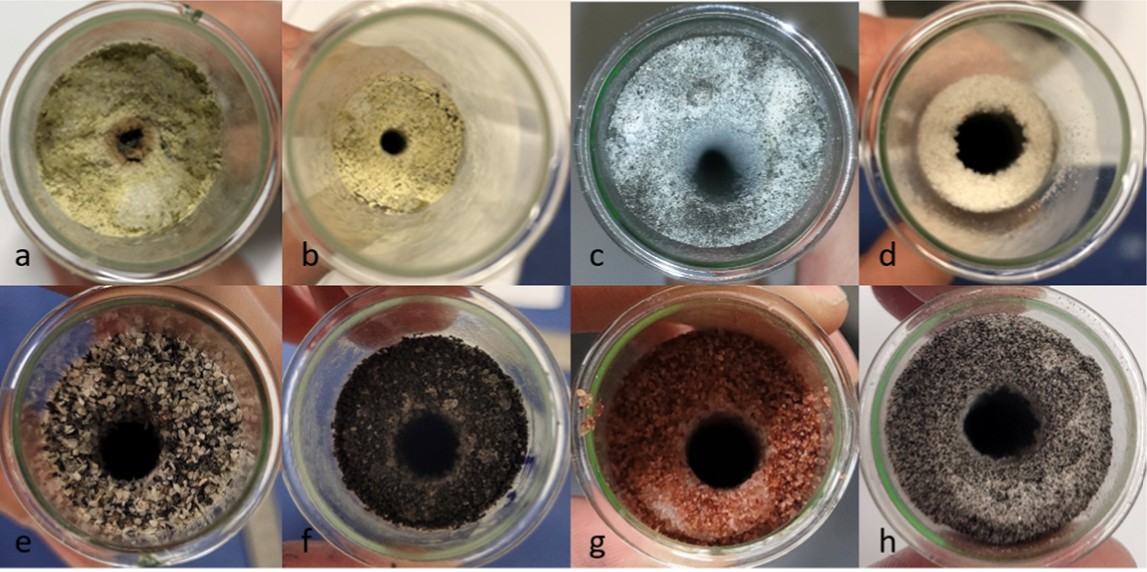

A number of the pattern holes created by the laser. Credit score – M. Koßagk et al
“Granular” ice was their subsequent goal – these are ice grains somewhat than a strong block which can be extra typical of what we might look forward to finding on a frozen moon like Enceladus. On this atmosphere the laser labored even higher, with a drill pace of 1.7 m/h and an influence consumption of solely 12.7W. This improved pace is probably going due to the decrease density of the grains in comparison with the majority ice.
A last much more spectacular take a look at was a sequence achieved with “dusty” ice, the place “mud” (i.e. non-volatile materials like rock) made up 50% or extra of the pattern. Because the laser solely wanted to sublimate the ice portion of the pattern, and that sublimation would forcibly eject a lot of the fabric wanted again up the borehole, the system was capable of obtain a lot sooner outcomes with this sort of pattern. With 50% mud, the system was capable of go about 3.1 m/h with round 10W of energy.
These are spectacular speeds, particularly when contemplating that the system may work on a regular basis, resulting in impressively deep holes comparatively shortly. That being mentioned, there are some drawbacks, and a few additional works that must be achieved.
Picture of the borehole the laser dug by means of among the samples. Credit score – M. Koßagk et al
The borehole that was drilled was solely about 6.15mm large – not very a lot room to get any type of probe or anything down below the floor of the ice. There’s additionally a danger that the stress on the backside of a deep gap may construct up sufficient that the ice begins to soften somewhat than sublimate, lowering its effectiveness by basically heating up melted water somewhat than ice immediately.
Boreholes on Earth are identified to “squeeze” shut after a sure depth, and whereas that continues to be a possible difficulty on different planets, their decrease gravity would possible imply they might keep open for deeper than they might sometimes on Earth. Nonetheless, one of many system’s benefits – the truth that mud is expelled from throughout the borehole – additionally has a down-side. It will probably coat the mirrors used to direct the laser, lowering their efficacy. Any totally scaled up system would require a way to lower that contamination.
In the end it is a nice step in a brand new route for digging deep into ice our bodies all through our photo voltaic system. Although it actually was solely a small step – they efficiently drilled to solely about 25 cm. In the long term, some type of borehole system might be wanted for icy physique missions sooner or later, and a laser appears to be a really viable choice, with some additional testing and tweaking. Sometime quickly a laser could be melting its means by means of the floor of one of many photo voltaic system’s most attention-grabbing inhabitants. Sadly there most likely received’t be any cats there to chase it.
