After a day-long delay as a result of chilly climate and a floor system situation, Kent, Wash.-based Blue Origin efficiently returned its New Shepard to flight after a 15-month hiatus on Tuesday, with a flawless uncrewed mission out of West Texas. Booster NS4 rose ponderously from Launch Website One at 10:42:28 a.m. CST, lifting Crew Capsule RSS H.G. Wells to the sting of area on the NS-24 mission with 33 payloads from NASA, academia, analysis establishments and industrial entities, in addition to 38,000 postcards through Blue Origin’s non-profit Membership for the Future basis.
“A particular thanks to all of our clients who flew necessary science in the present day and the scholars who contributed postcards to advance our way forward for dwelling and dealing in area for the good thing about Earth,” stated Phil Joyce, senior vp for New Shepard. “Demand for New Shepard flights continues to develop and we’re trying ahead to rising our flight cadence in 2024.”
Immediately’s launch got here 15 months after NS-23—one other uncrewed mission, laden with 36 analysis payloads and 1000’s of Membership for the Future postcards—suffered an anomaly throughout its ascent section on 12 September of final 12 months, inflicting the on-board emergency detection system to autonomously trigger the separation of RSS H.G. Wells at altitude. The Crew Capsule parachuted to a protected, intact touchdown, however the NS3 booster impacted the bottom and was misplaced.
Last March, after a posh investigation, Blue Origin revealed that the mishap arose in response to “a thermo-structural failure” of NS3’s BE-3 engine nozzle. “The ensuing thrust misalignment correctly triggered the Crew Capsule escape system,” it was famous, “which functioned as designed all through the flight.”
In response to the separation of the Crew Capsule, New Shepard’s propulsion system commanded the shutdown of the BE-3 engine, which adopted “an unpowered trajectory to influence inside the outlined flight security evaluation prediction, leading to no hazard to human life or property”.
The trigger was traced to structural fatigue failure of the engine nozzle, brought on by operational temperatures “that exceeded the anticipated and analyzed values of the nozzle materials”. Submit-anomaly assessments revealed that the flight configuration of the nozzle on the NS-23 mission operated at larger temperatures than earlier design configurations, with forensic examination of recovered fragments revealing “clear proof of thermal injury and sizzling streaks ensuing from elevated working temperatures”.
Final 12 months’s anomaly led to a raft of design modifications, notably to the BE-3 engine’s combustion chamber and working parameters to cut back nozzle bulk and hot-streak temperatures. Further design modifications to the nozzle itself served to enhance structural efficiency underneath excessive thermal and dynamic hundreds.
Though Blue Origin famous in March that it supposed to return New Shepard to flight “quickly”, with a reflight of NS-23’s payload suite, it was not till final week that the definitive NS-24 launch date was revealed. Initially focused for 8:30 a.m. CST on Monday, chilly temperatures at Launch Website One pushed this T-0 level again by one hour, earlier than a floor system situation that required troubleshooting compelled a scrub and 24-hour turnaround for a Tuesday launch try opening at 10:37 a.m. CST.
Liftoff finally passed off 5 minutes into this morning’s window. “Steering Inner,” got here the decision at T-16 seconds, adopted by “Command Engine Begin” as New Shepard’s highly effective BE-3 engine roared alive with a mixed thrust of 110,000 kilos (50,000 kilograms). The booster sprang from Launch Website One and climbed quickly into crystalline West Texas skies, easily passing the interval of peak aerodynamic turbulence (“Max Q”) a minute into the flight.
This time, the BE-3 shut down as supposed at 2.5 minutes after launch and the NS4 booster—making its ninth flight and third uncrewed mission since January 2021—and Crew Capsule separated a number of second later. In accordance with Blue Origin’s revealed statistics, NS4 reached an apogee of 347,208 toes above floor stage, equal to 65.75 miles (105.8 kilometers), and the Crew Capsule’s top peaked at 347,601 toes, equal to 65.83 miles (105.9 kilometers).

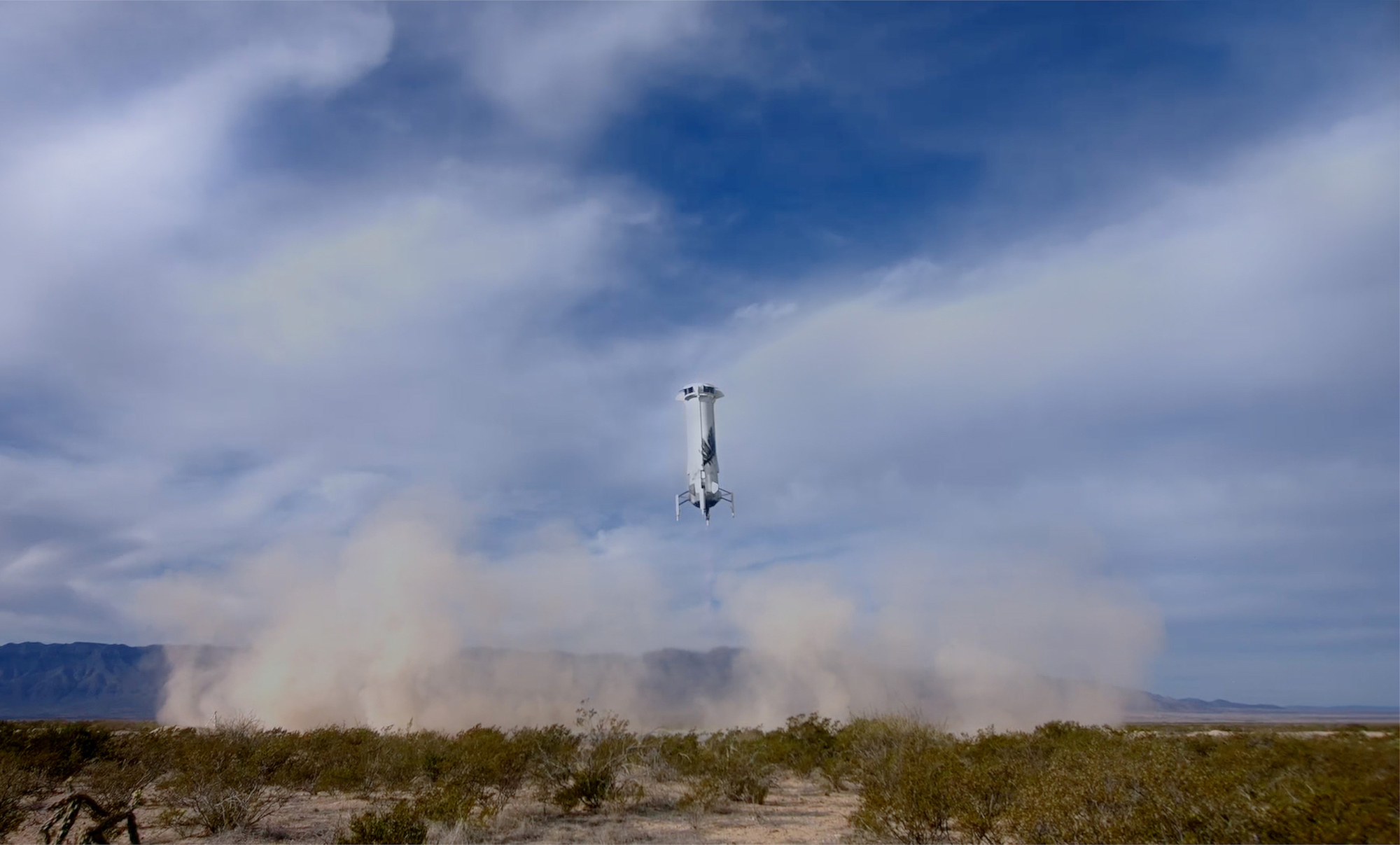

Descending beneath three stunning red-and-blue principal parachute canopies, the Crew Capsule landed safely at 10:52:41 a.m. CST, wrapping up a flight of simply over ten minutes. So too did NS4, whose picture-perfect landing was heralded in superb vogue by a rip-roaring sonic increase that echoed throughout the desiccated West Texas panorama.
Below the U.S. definition, any automobile exceeding 50 miles (80 kilometers)—roughly the transitional zone between the mesosphere and thermosphere—is classed as having handed the lowermost threshold for the “edge” of area. However the Fédération Aéronautique Internationale (FAI) notches this threshold somewhat larger at 62 miles (100 kilometers), on the so-called “Kármán Line”.
That is named for Theodore von Kármán, a Hungarian-American engineer who first described it because the altitude at which the ambiance is simply too skinny for aeronautical functions, since autos would wish to journey sooner than orbital velocity to realize ample carry.
